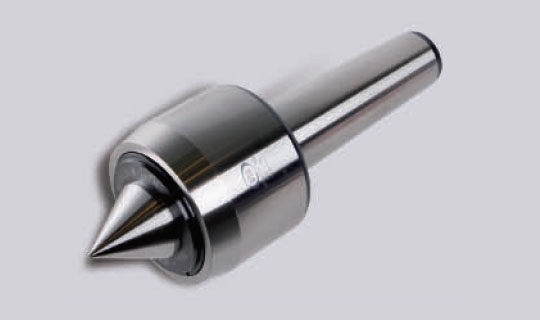

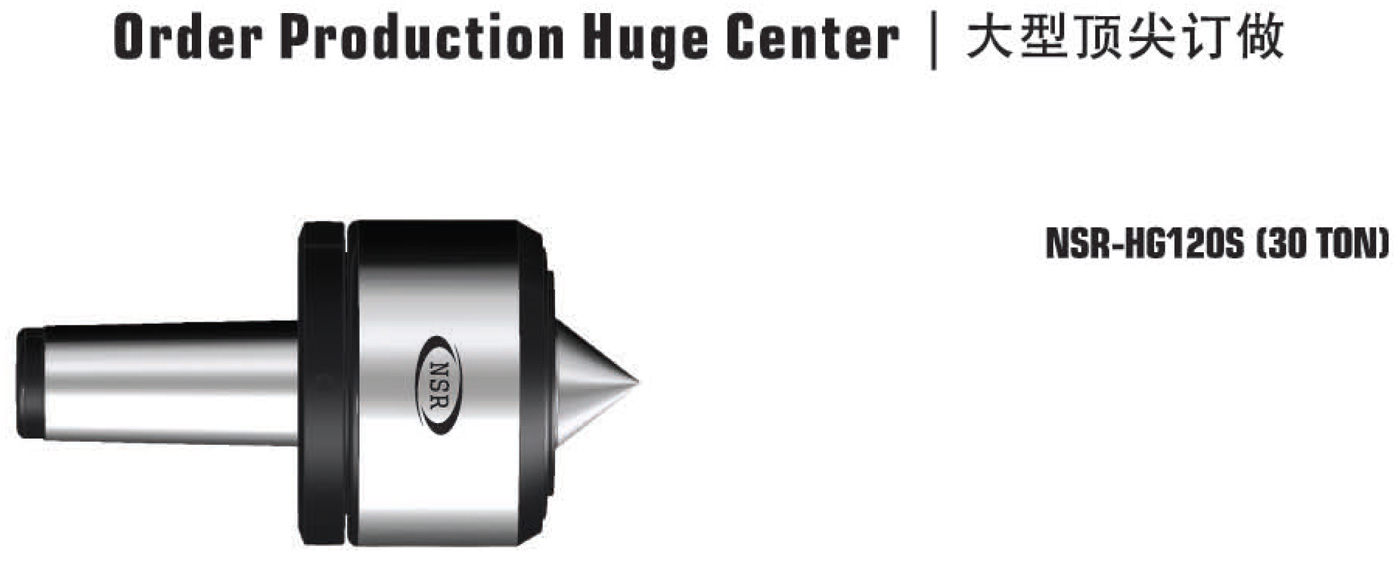

ENGHG Series
Large Grinding Center (Other TAPER available custom-made)
HG-Series
- Large workpiece machining center
- Special oil seal, Adoption of contactless (Coolant and oreign matter to prevent infiltration)
- Heat treatment hardness of center acis, HRC 58~62

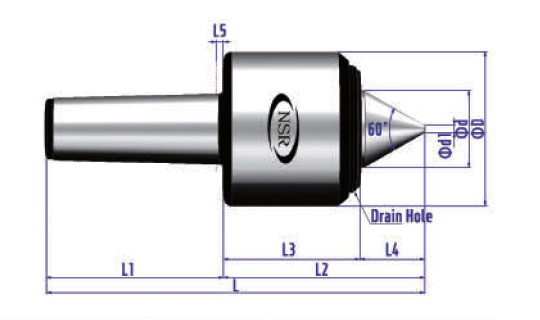

NSR-HG TYPE
- Large grinding center (Other TAPER available custom-made)
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | Φd1 | L | L1 | L2 | L3 | L4 | L5 | ||||||
| 1006G60 | 6THG(60") | MT6 | 165 | 79 | 3 | 400.7 | 191 | 209.7 | 138 | 71.7 | 12 | 8,000 | 800 | 0.025 |
| 1006G75 | 6THG(75") | 384.4 | 193.4 | 55.4 | ||||||||||
| 1007G60 | 7THG(60") | MT7 | 165 | 79 | 3 | 469.7 | 260 | 209.7 | 138 | 71.7 | 12 |
10,000 | 800 | 0.005 |
| 1007G75 | 7THG(75") | 453.4 | 193.4 | 55.4 | ||||||||||
| HG80 | HG80 | 1:10 | 178 | 109 | 3 | 442.3 | 203 | 239.3 | 138 | 101.3 | 10 | 10,000 | 850 | 0.005 |
| 1:20 | ||||||||||||||
| HG100 | HG100 | 1:10 | 218 | 109 | 3 | 534.6 | 250 | 284.6 | 193 | 91.6 | 10 | 15,000 | 750 | 0.005 |
| 1:20 | ||||||||||||||
| HG120 | HG120 | 1:10 | 310 | 124 | 3 | 619.5 | 268.5 | 351 | 242.5 | 108.4 | 15 | 25,000 | 500 | 0.005 |
| 1:20 | ||||||||||||||
NSR-HGN TYPE
- Large grinding center (Other TAPER available custom-made)
- NUT Mounting
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | ΦD1 | Φd | Φd1 | L | L1 | L2 | L3 | L4 | L5 | ||||||
| HGN80 | HGN80 | 1:10 | 178 | 190 | 109 | 3 | 442.3 | 203 | 239.3 | 138 | 101.3 | 10 | 10,000 | 850 | 0.005 |
| 1:20 | |||||||||||||||
| HGN100 | HGN100 | 1:10 | 218 | 228 | 109 | 3 | 534.6 | 250 | 284.6 | 193 | 91.6 | 10 | 15,000 | 750 | 0.005 |
| 1:20 | |||||||||||||||
| HGN120 | HGN120 | 1:10 | 310 | 320 | 124 | 3 | 619.5 | 268.5 | 351 | 242.5 | 108.4 | 15 | 25,000 | 500 | 0.005 |
| 1:20 | |||||||||||||||
