ENGCNP Series
Point Replacement Type (Dedicated for Small Workpieces)

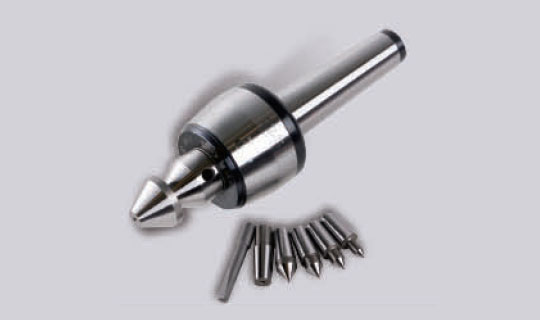

CNP-Series

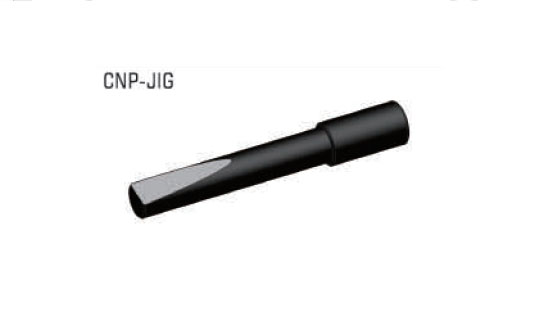

- Point can be replaced to facilitate machining of various products.
- Run out-Max 0.003㎜
- Point Tightening RUN OUT - Max 0.005㎜

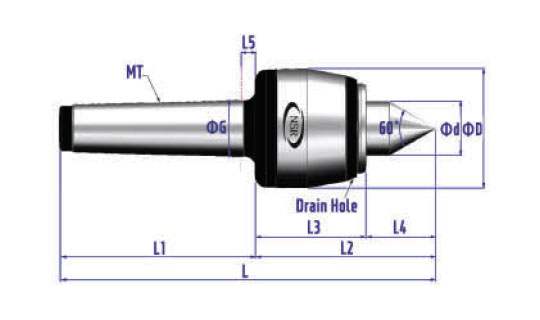

NSR-CNP BODY TYPE
- Heat treatment hardness of center axis, HRC 58~62
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX R.P.M |
MAX Run Out(㎜) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ΦH | |||||
| 1022013 | 3CNP BODY | MT3 | 49 | 31.4 | 158.5 | 85 | 73.5 | 42 | 31.5 | 6 | 12 | 5,000 | 0.003 |
| 1022014 | 4CNP BODY | MT4 | 63 | 31.4 | 191 | 108 | 83 | 53 | 30 | 8 | 12 | 4,000 | 0.003 |
| 1022015 | 5CNP BODY | MT5 | 83 | 40 | 235 | 136 | 99 | 65 | 34 | 8 | 12 | 3,000 | 0.003 |
NSR-CNP POINT (3,4,5 Combined)
Scroll Left / Right
| Model No |
Model | Morse Taper |
Dimension | |||
|---|---|---|---|---|---|---|
| Φd | ΦD | L | H | |||

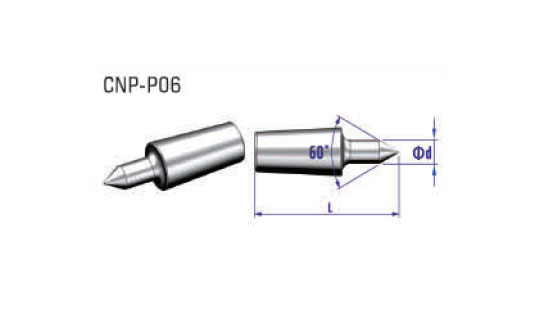

| CNP P06 | CNP POINT | 1:10 | 6 | 12.2 | 40 | - |

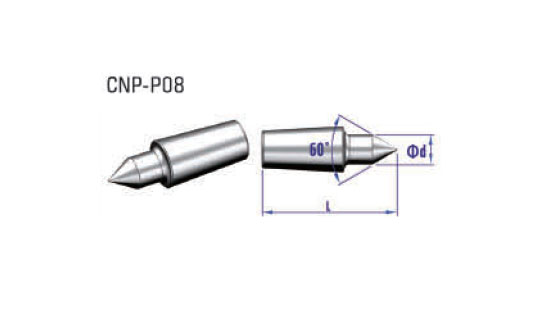

| CNP P08 | CNP POINT | 1:10 | 8 | 12.2 | 36 | - |

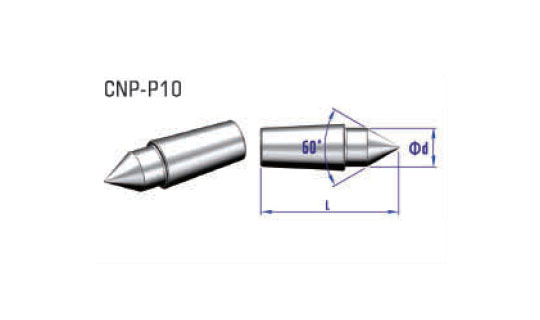

| CNP P10 | CNP POINT | 1:10 | 10 | 12.2 | 36 | - |

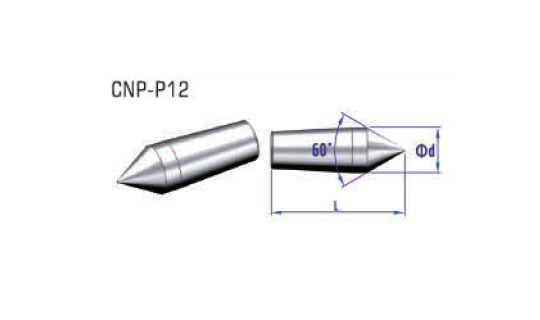

| CNP P12 | CNP POINT | 1:10 | 12 | 12.2 | 36 | - |

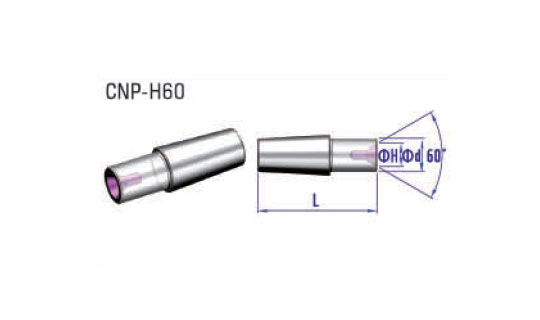

| CNP H60 | CNP POINT | 1:10 | 10 | 12.2 | 36 | 7 |

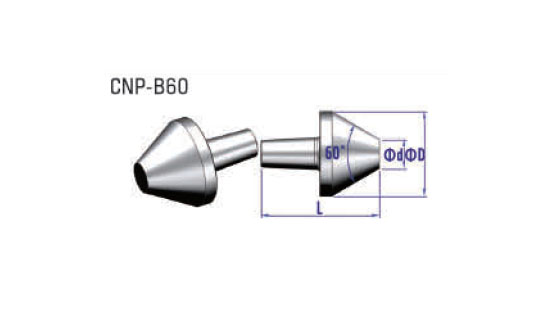

| CNP B60 | CNP POINT | 1:10 | 11 | 31.4 | 44.1 | - |
