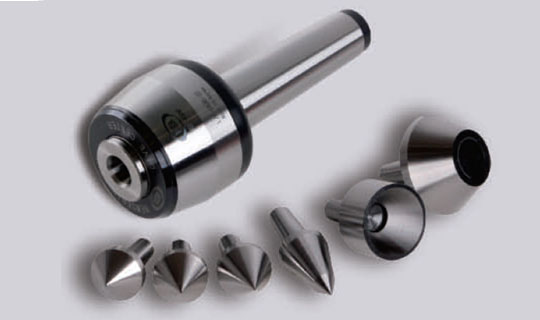

中心点可换型旋转顶尖

SNP-Series

中心点可换型旋转顶尖

NSR-SNP Type

  • 种类繁多的产品加工以方便切换顶尖使用
  • 中心轴点热处理硬度为HRC 58-62
  • 跳动精度0.003以内
  • 点紧固件跳动精度0.005以内
向左/向右滚动
Model
No
Model Morse
Taper
ΦD Φd L L1 L2 L3 L4 L5 ΦH MAX
RPM
WP
WEIGHT(kgf)
MAX
RUN OUT(mm)
1002012 2SNP BODY MT2 49 25 115 68 47 42 5 6 12 100 5,000 0.003
1002013 3SNP BODY MT3 49 25 85 85 47 42 5 6 12 180 5,000 0.003
1002014 4SNP BODY MT4 66 31.4 166 108 58 53 5 6 15 300 3,800 0.003
1002015 5SNP BODY MT5 83 40 207.5 136 71.5 65 6.2 8 22 700 3,000 0.003

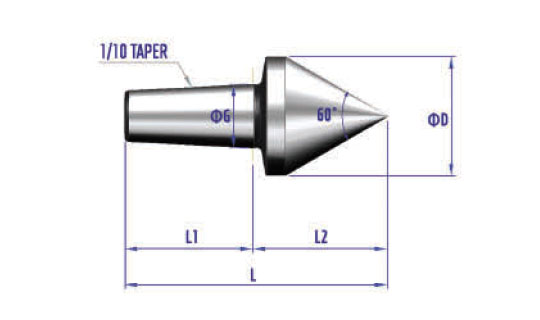

  • SNP POINT 60
    向左/向右滚动
    No. Model Morse
    Taper
    Dimension
    ΦD ΦG L L1 L2
    1002012-1 2SNP POINT 1:10 20 12 48 24 24
    1002013-1 3SNP POINT 1:10 20 12 48 24 24
    1002014-1 4SNP POINT 1:10 28 15 61.5 30 31.5
    1002015-1 5SNP POINT 1:10 28 22 78 35 43

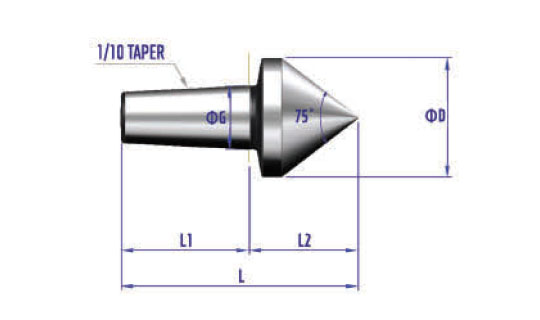

  • SNP POINT 75
    向左/向右滚动
    No. Model Morse
    Taper
    Dimension
    ΦD ΦG L L1 L2
    1002012-2 2SNP POINT 1:10 20 12 43.8 24 19.8
    1002013-2 3SNP POINT 1:10 20 12 43.8 24 19.8
    1002014-2 4SNP POINT 1:10 28 15 55.6 30 25.9
    1002015-2 5SNP POINT 1:10 28 22 70 35 35
  • SNP POINT 90
    向左/向右滚动
    No. Model Morse
    Taper
    Dimension
    ΦD ΦG L L1 L2
    1002012-3 2SNP POINT 1:10 20 12 40.9 24 16.9
    1002013-3 3SNP POINT 1:10 20 12 40.9 24 16.9
    1002014-3 4SNP POINT 1:10 28 15 51.5 30 21.5
    1002015-3 5SNP POINT 1:10 28 22 64.3 35 29.3

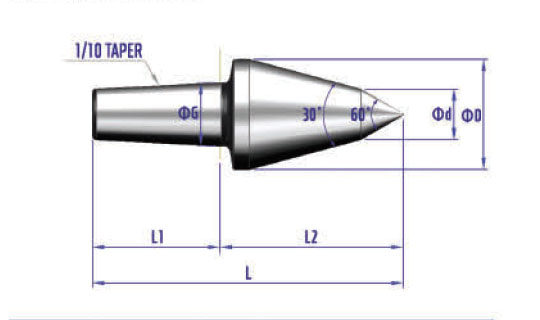

  • SNP POINT A30
    向左/向右滚动
    No. Model Morse
    Taper
    Dimension
    ΦD ΦG L L1 L2
    1002012-4 2SNP POINT 1:10 18 12 24 30 10
    1002013-4 3SNP POINT 1:10 18 12 24 30 10
    1002014-4 4SNP POINT 1:10 26 15 30 43 12
    1002015-4 5SNP POINT 1:10 32 22 35 55 14

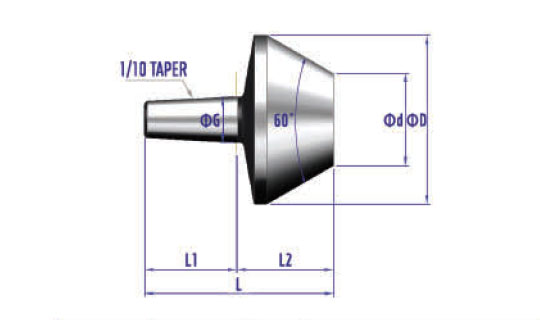

  • SNP POINT B60
    向左/向右滚动
    No. Model Morse
    Taper
    Dimension
    ΦD ΦG L L1 L2 Φd
    1002012-5 2SNP POINT 1:10 45 12 51 24 27 25
    1002013-5 3SNP POINT 1:10 45 12 51 24 27 25
    1002014-5 4SNP POINT 1:10 55 15 61.5 30 31.5 30
    1002015-5 5SNP POINT 1:10 70 22 73 35 38 40

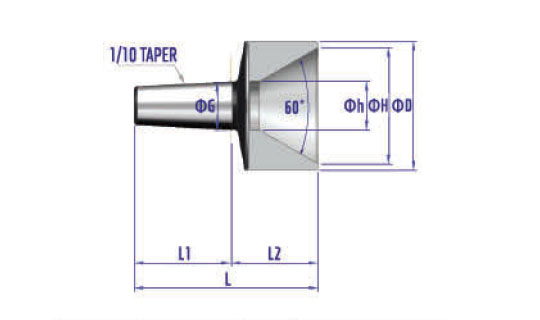

  • SNP POINT H60
    向左/向右滚动
    No. Model

    Morse
    Taper

    Dimension
    ΦD ΦG L L1 L2 ΦH Φh
    1002012-6 2SNP POINT MT2 22 12 40 24 16 18 6
    1002013-6 3SNP POINT MT3 22 12 40 24 16 18 6
    1002014-6 4SNP POINT MT4 40 15 57 30 27 36 15
    1002015-6 5SNP POINT MT5 50 22 65 35 30 47 25
  • JIG
    向左/向右滚动
    No. TYPE
    1002013-7 2.3SNP JIG
    1002014-7 4SNP JIG
    1002015-7 5SNP JIG
